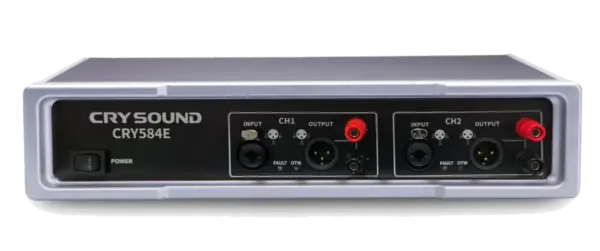

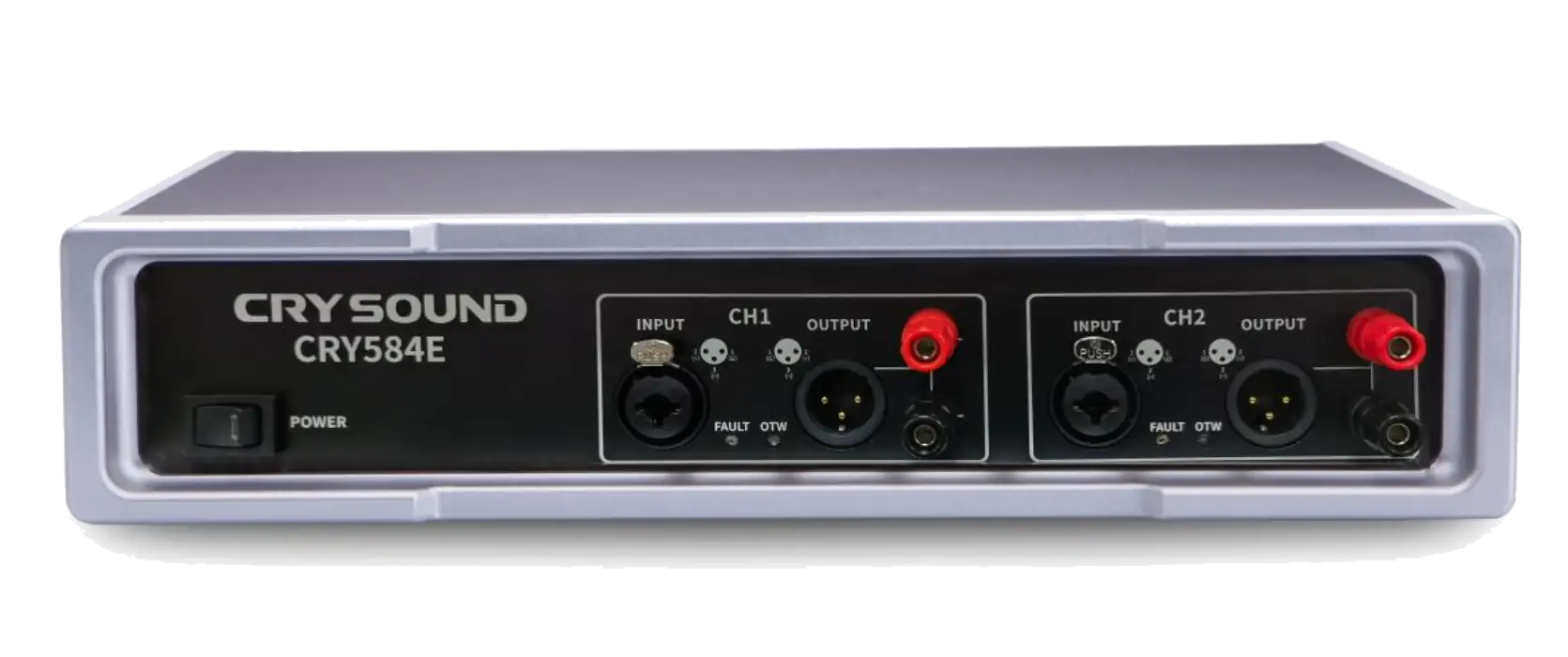

CRY584E Power Amplifier
CRY584E Power Amplifier
The CRY584E is a state-of-the-art high-performance power amplifier that utilizes energy-efficient Class D amplifier technology to deliver up to 56W of continuous output power. Designed for small to medium power acoustic test scenarios, the device can also serve as a versatile power amplifier for general-purpose electroacoustic testing.
- Independent 4-channel balanced input/output
- Continuous power output up to 56W
- Extremely low distortion
Features
- Includes a driver for loudspeakers, artificial mouths, etc.
- Designed for production line and laboratory acoustic tests.
- Features a universal audio power amplifier.
- Boasts multiple protection functions such as overload protection, short circuit protection and over temperature protection.
Features
- Includes a driver for loudspeakers, artificial mouths, etc.
- Designed for production line and laboratory acoustic tests.
- Features a universal audio power amplifier.
- Boasts multiple protection functions such as overload protection, short circuit protection and over temperature protection.
Technical Specifications
Technical Parameters
Maximum output power(continuous)
Maximum output power(continuous)
56W,THD+N<0.01%@1KHz,4ohm
Noise
Noise
<-84dBV(A Counting right)
Frequency Range
Frequency Range
20Hz~20KHz±0.1dB
Total Harmonic Distortion(THD)
Total Harmonic Distortion(THD)
<0.001%@20Hz~400Hz,1W;<0.002%@1KHz
Signal to Noise Ratio(SNR)
Signal to Noise Ratio(SNR)
>107dB
Channel isolation
Channel isolation
>92dB
Load
Load
3-16ohm
Gain
Gain
17.9dB
Input Connector
Input Connector
Balance:XLR,TRS
Input impedance
Input impedance
Differential 20kΩ
Output Connector
Output Connector
Balance:XLR,banana head
Maximum output voltage
Maximum output voltage
15Vrms
Size
Size
330*275*70mm
AC power input range
AC power input range
100~250VAC,50~60Hz
