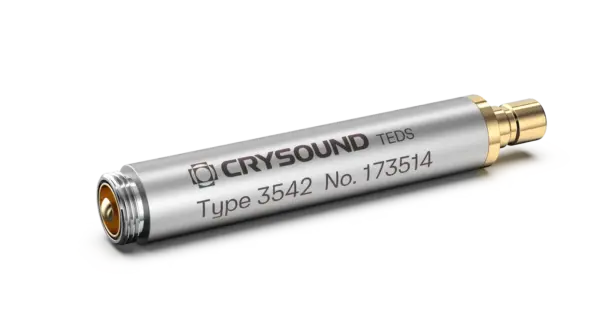

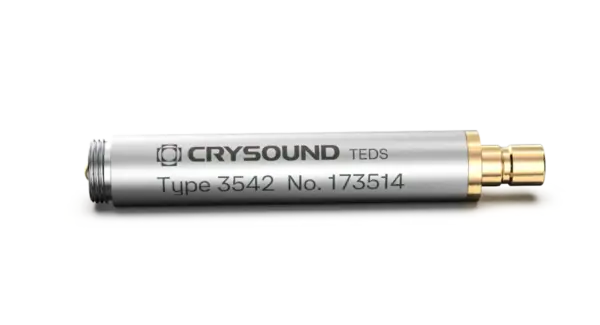

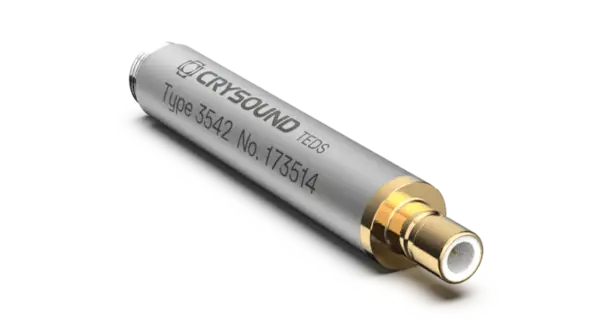

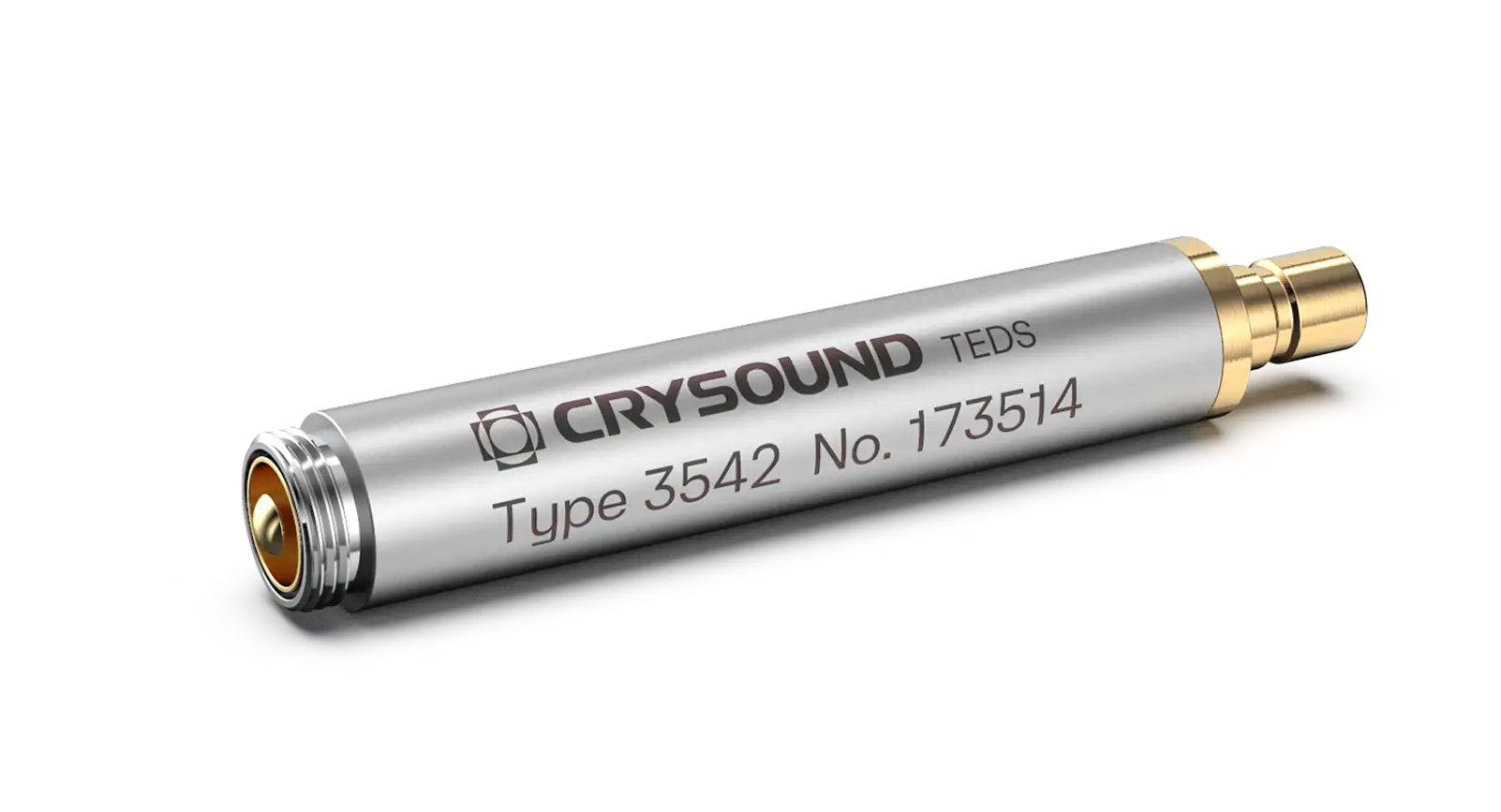

CRY3542 1/4" Preamplifier, IEPE, SMB Connector

CRY3542 1/4" Preamplifier, IEPE, SMB Connector

CRY3542 is a constant-current power preamplifier that can be used with the CRY3000 series 1/4 inch prepolarization measuring microphone and is widely compatible with other brands.

The CRY3542 features a high input impedance that is converted to a low output impedance, enabling the use of extended cables without compromising performance. It boasts exceptionally low background noise, minimizing any load on the microphone and ensuring accurate results. The inclusion of TEDS functionality streamlines testing by reducing setup time. Its robust design and durability make it adaptable to a variety of environmental conditions.

  • High input impedance, low output impedance
  • SMB Interface
  • Supports “Smart Transducer Interface” IEEE 1451.4 containing TEDS
  • Low background noise
No items found.

Technical Specifications

No items found.
No items found.
Please choose a topic.
Technical Specification
Frequency Response Range
Frequency Response Range
10Hz to 100kHz( ±0.2dB)
Input Impedance
Input Impedance
>2GΩ / 50pF
Output Impedance
Output Impedance
<20Ω
Distortion (THD)
Distortion (THD)
<0.1%
Max Output Voltage
Max Output Voltage
>5.0 Vrms (power supply for +24V)
Power Supply
Power Supply
IEPE (2mA-10mA)
Nominal Operating Current
Nominal Operating Current
4mA
Noise, A-weighting
Noise, A-weighting
< 3μVrms
Noise, linearity (20 ~ 20kHz)
Noise, linearity (20 ~ 20kHz)
< 10μVrms
DC bias voltage
DC bias voltage
12V±2V
Connector Type
Connector Type
SMB
Temperature
Temperature
-30℃to +70℃(-22 to 158 °F )
Threaded Coupling
Threaded Coupling
5.7-60 UNS
Diameter
Diameter
6.35mm(0.25'')
Length
Length
40mm(1.57'')
